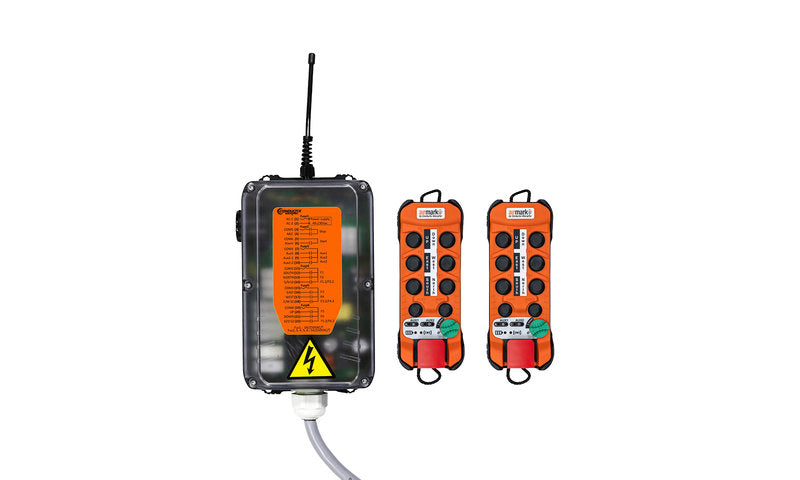

Conductix Airmark Wireless Remote-control MKP46B01

PART #MKP46B01

MANUFACTURER - CONDUCTIX

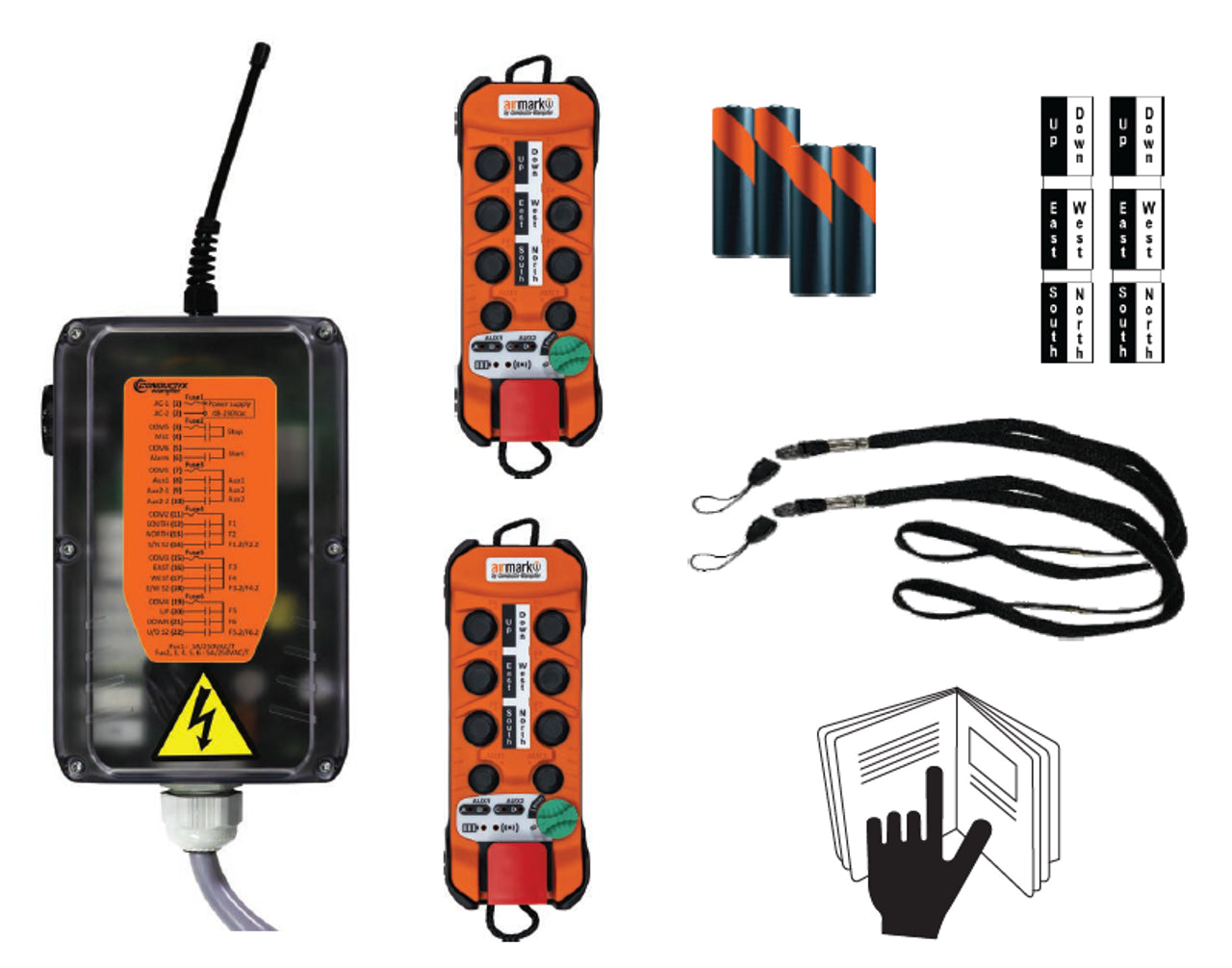

Right out of the box, Airmark by Conductix-Wampfler is a complete system and ready to go. Each Airmark system includes the following:

• One Airmark Receiver with built in horn and light
• Two Airmark 8 Button Transmitters
• Two sets of (2) AA Batteries
• Two sets of Button Decals
• Two Transmitter Neck lanyards
• Instructional Manual

Airmark Overview

Efficient
• Control of the 3 motions of the crane with the 6 two step pushbuttons
• Narrow body transmitter for comfortable one-handed operation
• Built-in horn & warning lamp
• Quick and easy to install and maintain
» Prewired receiver (22 wires, 1.5m long cable)
» Transmitter / Receiver pairing without needing to access the receiver
» Automatic radio channel management

Reliable
• Full 2 Year Warranty on both Transmitters and Receiver
• Radio signal indication and scanning function
• Regulated or adjustable radio power for the best trade-off between range and battery consumption
• Rubber bumper for shock absorption if dropped
• Complete set of spare parts available

Flexible
• Standard 3 motion crane, auxiliary hoist, tandem trolley, and tandem crane
• Radio channel can also be selected manually, or one of three different automatic channel options
• A wide range of optional accessories

Features and Benefits

Pairing of transmitters:
• Each system comes with 2 transmitters already paired
• Tandem trolley and crane applications are easily achieved by pairing a transmitter with two receivers
• Transmitter/Receiver can be paired without needing to access the receiver, thus avoiding climbing of the crane
• Pairing a new transmitter automatically replaces the first paired transmitter

Built-in horn to signal the start of crane motion:
• Each receiver has 99 possible horn sounds that can either be manually chosen or set to automatically match the radio channel in use
• Sound of the horn can be set to either high or low
• A user will know by the sound which crane they are operating

Built-in warning lamp to signal:
• Receiver is ON
• Receiver is Free or Assigned (for Tandem configurations)
• Receiver is Selected (during pairing)
• Pairing is in progress

Select the best radio channel:
• Four options to make sure the best radio channel is selected
» Automatically selected at every startup
» Automatically changed in operation if another channel is more efficient
» Manually selected from 92 available channels
» Channel scan function is available to help select the best channel

Trade-off between radio range and battery life:
• Self-adjusting radio power to limit battery consumption
• Manually reduce power to limit radio range

Tandem mode can be configured with different setting possibilities for:
• The selection of overhead crane A and B
» Tandem crane can be setup with a single tandem transmitter and dedicated transmitter for crane A and B limiting tandem control to single transmitter
» Tandem can be set up with dual tandem transmitters where each transmitter can control both systems
• The automatic or voluntary release of stopped overhead crane
• The automatic shutdown of the second overhead crane if the radio link with the first is lost

Protected startup by keystroke combination:
• Pin code startup. Create a pin code to prevent unauthorized operators from driving the crane
• Pin code option to protect radio setting while allowing for operation without code
