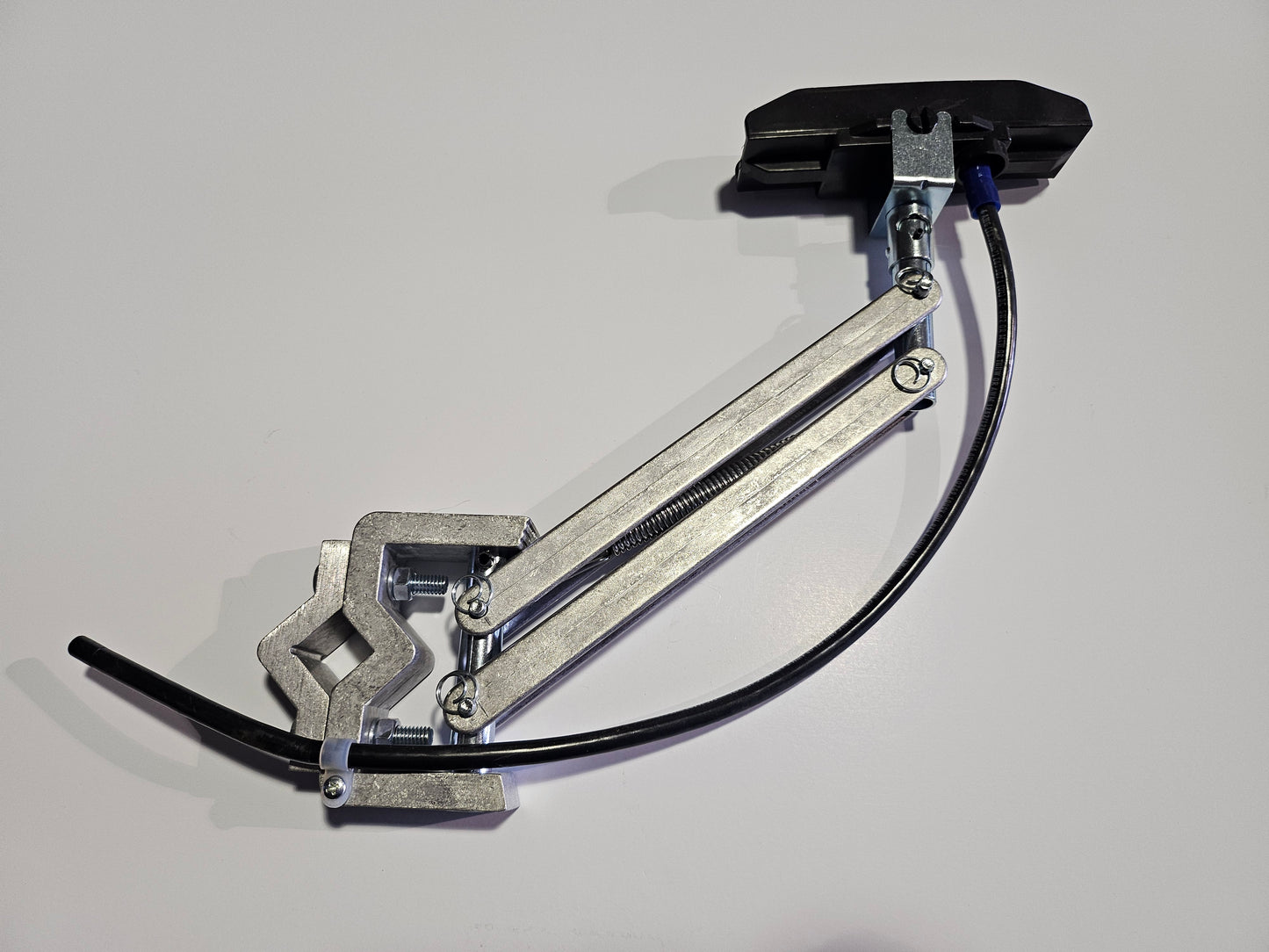

Duct-O-Wire P-100-V5 Collector

Part #P-100-V5

1. P-Series
2. 100 amp Collector
3. Single shoe
4. Vertical mount
5. Mounts to 1 inch square bar.
6. Power bars must be spaced at least 3 inches apart

P-Series Collector Assemblies
P-Series Collectors are used on straight and
curved runs and transfers. The pantograph
design provides virtually constant spring
pressure for the entire stroke range. Lateral
Mount Collectors are provided with spring
balance. Conductor Bars must be spaced at
least 3 inches apart.
