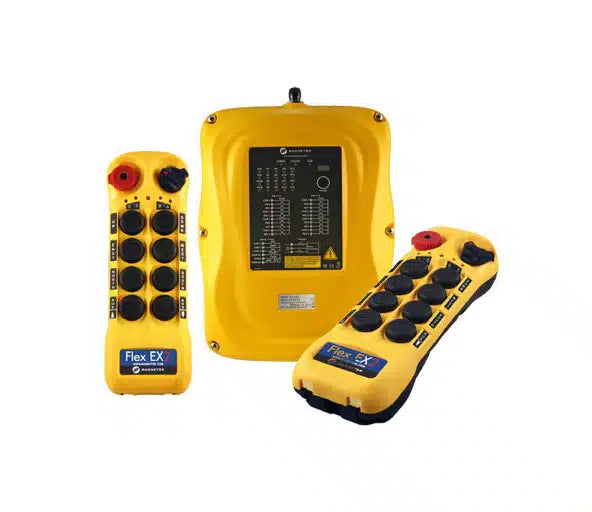

Magnetek Flex 8EX2-A/B

Magnetek Flex EX2 Specs

1. FLEX-6EX2 A-B & Both
2. 6 motion all 2 speed
3. Turn Key on/off switch
4. Control Voltage 110-volt
5. Operate two Hoists & Trolleys on the same bridge crane.
6. Equipped with more than 200 programmable functions to suit all types of applications
7. Zero G feature identifies an accidental transmitter drop, ceasing all operation, preventing unintended equipment motion and enhancing system safety
8. IP66-rated, fully sealed transmitter and receiver enclosures provide you
   with confidence and protection in harsh indoor or outdoor environments
9. Battery compartment with single thumbscrew provides easy access to
   batteries, dipswitches, and programming port
10. A wide variety of accessories are available to provide additional protection
    and flexibility, including protective rubber transmitter boots, padded nylon
    transmitter case, retractable belt clip, and horn kit.

SPECIALTY MODELS RECEIVERS
Flex EX2 radios are available with special operational
functions to provide even more control options.
Flex EX2 receivers were designed with field installation and
serviceability in mind. Receivers come prewired with 6’ of
cable and mounting hardware allowing fast installation.
Onboard diagnostic and output LEDs provide useful system
status information when installing and troubleshooting. All
components are easily accessible and field replaceable.

AB SELECTOR SWITCH (AB)
A three-position selector switch allows one operator to switch
operation between two trolley/hoists (A, B, or both) that are located
on a single bridge. The operator can easily identify which trolley
hoist is active on the crane by the position of the selector switch
(Available on 8- and 12-button models).

TANDEM OPERATION (T)
This system allows two operators to control two bridge cranes
independently or simultaneously with the three-position selector
switch. One operator can maximize the capabilities and lifting
power of two bridge cranes or two users can operate each bridge
crane independently (Available on 8- and 12-button models).

Magnetek Flex EX2 Kit Includes

(2) transmitter(s) and (1) receiver(s).

(2) AA- alkaline batteries.

100h operation

Carrying straps and vinyl cover.

Motion Labels for transmitter switches.

Mounting Bracket.5.7 foot long connection cable.

Note: Buzzer shown on receiver is not included with this kit.
