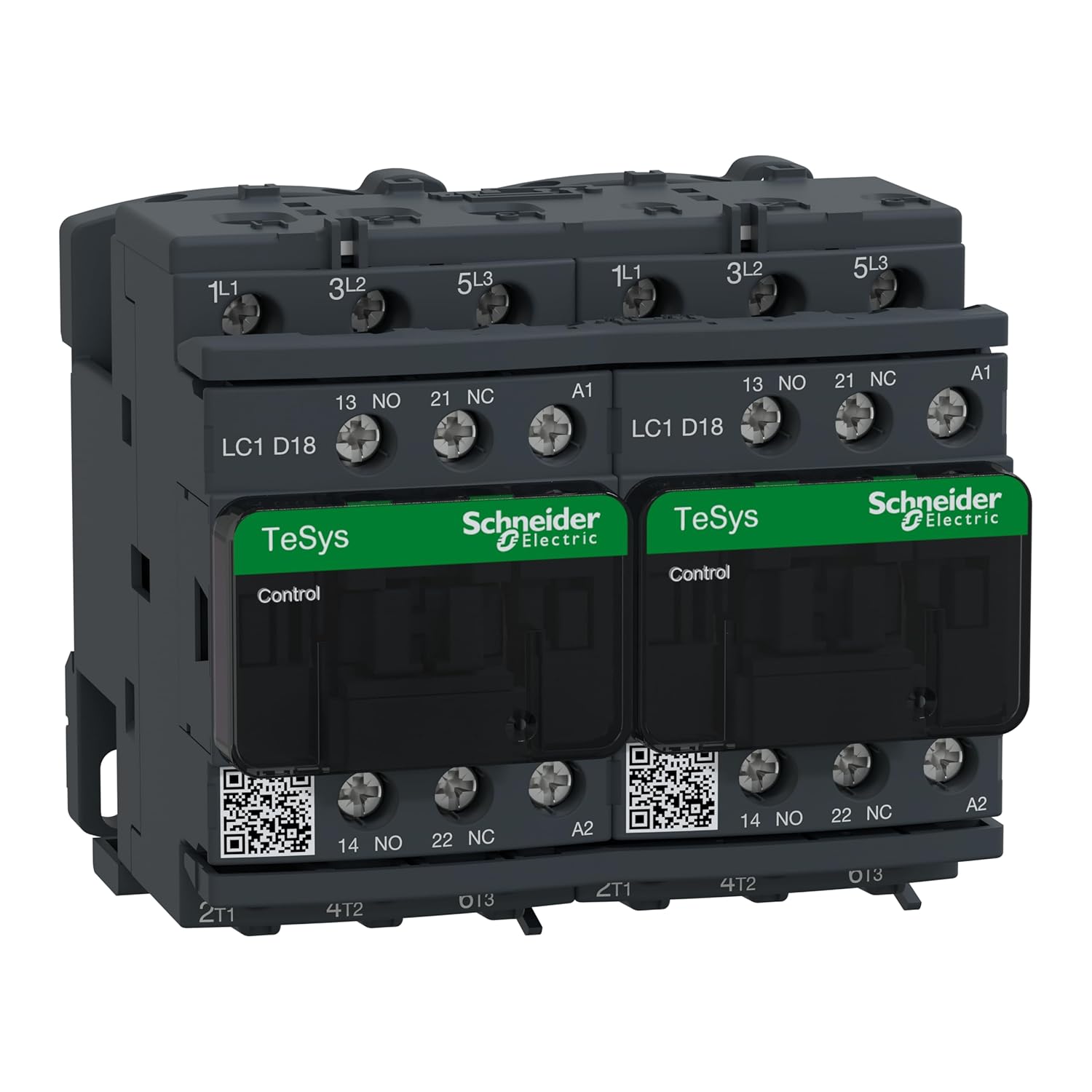

Reverser LC2D18G7
Reverser LC2D18G7
Regular price
$284.00 USD
Regular price
Sale price
$284.00 USD
Unit price
/
per
Couldn't load pickup availability
Brand - SCHNEIDER
Manufacturer Part Number LC2D18G7
Contactor Style IEC
Reversing Capability Reversing
Number of Poles3
Main Power Pole Contact Form 3NO
Includes Auxiliary Contacts Yes
Auxiliary Contacts Included1NO/1NC
Phase Three
Full Load Current - Inductive 18 amp
Coil Voltage120V AC
Frequency 50/60 Hz
Nominal Coil Voltage @ 60Hz120V AC
Maximum Voltage Rating 600V AC
Horsepower @ Three Phase - 208V AC5 hp
Horsepower @ Three Phase - 240V AC5 hp
Horsepower @ Three Phase - 480V AC10 hp
Includes Electrical Interlock; Mechanical Interlock
IP RatingIP20
NEMA Enclosure Rating No Enclosure
Overall Height 3.03 in
Overall Width 3.54 in
Overall Depth 3.39 in
Minimum Operating Temperature -40 °F
Maximum Operating Temperature 140 °F
