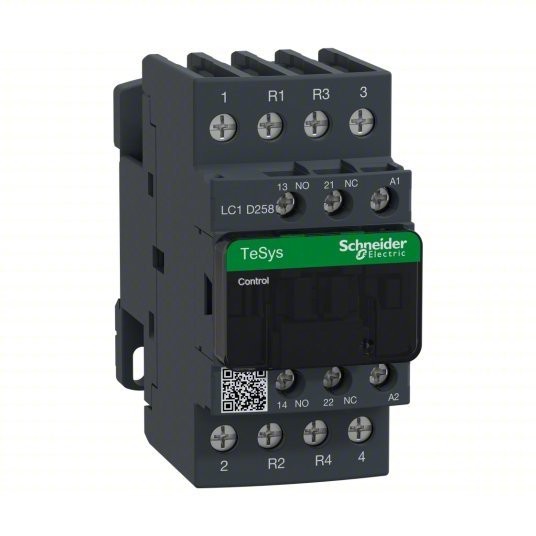

Speed Relay LC1D258G7

Speed Relay LC1D258G7

$223.15 USD
$223.15 USD
Sale Sold out
Brand SCHNEIDER
Manufacturer Part Number LC1D258G7
Contactor Style IEC
Non-Reversing
Number of Poles4
Main Power Pole Contact Form 2NO/2NC
Auxiliary Contacts Included 1NO/1NC
Full Load Current - Inductive 25 A
Full Load Current - Resistive 40 A
Coil Voltage 120V AC
Frequency 50/60 Hz
Nominal Coil Voltage @ 60Hz120V AC
Maximum Voltage Rating 690V AC
Wire Termination Type Screw Clamp

IP Rating IP20
Overall Height 4.13 in
Overall Width 1.77 in
Overall Depth 3.9 in
Mechanical Operating Durability15,000,000
Electrical Operating Durability1,400,000
Minimum Operating Temperature-40 °F
Maximum Operating Temperature140 °F
